1. Overview
The Automobile chassis assembly line serves as the foundational backbone of modern automotive manufacturing, specifically engineered to integrate complex mechanical systems such as suspensions, axles, powertrains, braking systems, and steering mechanisms. As a specialized industrial solution, the Automobile chassis assembly line operates on a robust framework, often utilizing heavy-duty plate-chain conveyors or specialized modular fixtures to transport large and heavy vehicle frames. Unlike the final assembly lines for complete vehicles, the Automobile chassis assembly line focuses exclusively on constructing the skeletal and functional core of the automobile. This intricate process demands extreme precision in component locating and torque application, making the Automobile chassis assembly line a marvel of automation and industrial engineering.
2. Details
- Heavy-Duty Plate-Chain Conveyor System: The physical infrastructure of the Automobile chassis assembly line typically incorporates a wide-surface plate-chain conveyor system. This robust conveyor system ensures smooth transfer of high-mass chassis cradles through various stations. The Automobile chassis assembly line is designed to handle significant weight loads, providing a stable platform for workers to perform operations such as engine mounting and axle installation simultaneously.
- Modular Fixturing and Ergonomic Workstations: Along the Automobile chassis assembly line, specialized holding fixtures secure the frame to the conveyor. These fixtures are adjustable to accommodate different vehicle models on the same Automobile chassis assembly line. Workstations feature ergonomic layouts with strategically placed tooling panels, allowing operators to efficiently manage the assembly of complex mechanical components within the Automobile chassis assembly line environment.

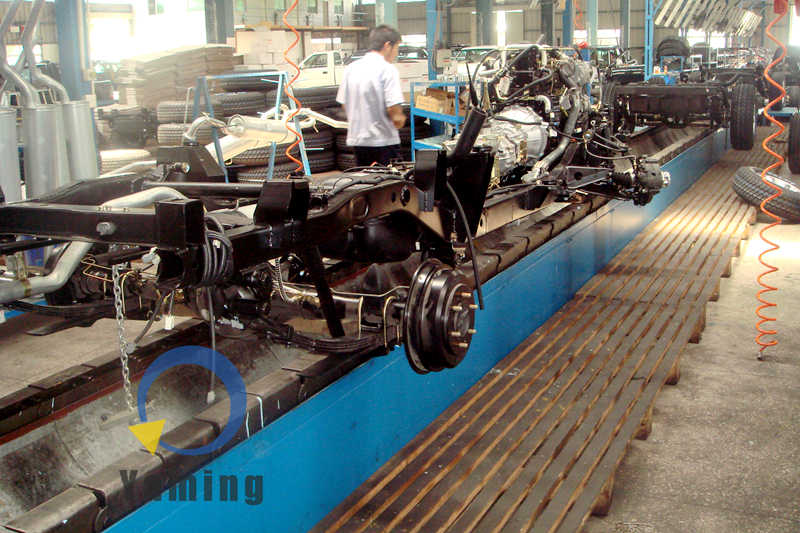

- Integrated Pneumatic and Electrical Utilities: The Automobile chassis assembly line is supported by an overhead utility distribution system. Orange spiral pneumatic hoses and electrical cables are suspended above the line, delivering essential power and compressed air to handheld torque tools. This infrastructure is crucial for maintaining the high operational efficiency required by the Automobile chassis assembly line.
- Sequential Assembly Process: The workflow on the Automobile chassis assembly line follows a strict sequence. It begins with the arrival of the bare chassis, followed by the installation of rear axles, suspension systems, fuel tanks, and brake lines. The Automobile chassis assembly line then facilitates the complex marriage of the engine and transmission assembly, ensuring precise alignment before proceeding to the installation of front axles and steering components.
- Rigorous Quality Control Gates: As the chassis moves along the Automobile chassis assembly line, it passes through critical inspection zones. Here, dimensional accuracy and joint integrity are verified. The Automobile chassis assembly line is equipped with diagnostic checkpoints to ensure that all safety-critical parameters meet stringent manufacturing standards before the chassis is released for the final vehicle mating process.
3. Parameters
(Note: The following parameters are inferred values based on typical industrial standards for heavy-duty Automobile chassis assembly line systems. Specific values are subject to the actual equipment technical agreement.)
| Parameter Category | Item | Reference Specification / Description |
|---|---|---|
| Conveyor System | Type | Heavy-duty Dual-chain Plate Conveyor |
| Load Capacity | ≥ 10,000 kg per fixture | |
| Conveying Speed | 1.0 – 6.0 m/min (Variable Frequency Drive) | |
| Plate Surface Height | 400mm – 600mm (Optimized for ergonomic access) | |
| Workstation | Fixture Type | Adjustable Modular Clamping Fixtures |
| Tooling Interface | Standard Industrial Quick Connectors (Pneumatic/Electric) | |
| Control System | Core Controller | PLC (Programmable Logic Controller) |
| Operation Mode | Automatic / Manual Step-by-Step | |
| Line Dimension | Station Pitch | 6000 mm – 7500 mm |
| Effective Line Length | 60 m – 90 m (Customizable) |
The automobile chassis production line is a dedicated automatic production line for mass‑producing chassis of passenger vehicles and commercial vehicles. It features a high‑rigidity heavy‑duty structure and high‑precision positioning capability at the ±0.1 mm level. Supporting mixed‑model flexible production, it can connect the full processes including welding, riveting, bolt tightening, inspection and assembly. The automation rate of core workstations exceeds 95%. The whole production line is connected to the MES system to realize traceability of all production data. Equipped with multiple safety protection and environmental‑protection supporting devices, it boasts a mean time between failures of over 8000 hours. It not only meets the mass‑production requirements of traditional fuel‑powered chassis, but also reserves space for subsequent upgrades of drive‑by‑wire chassis and new‑energy intelligent chassis, adapting to the high‑takt and high‑consistency large‑scale production requirements of original equipment manufacturers.
