Excavator Assembly Line Technical Introduction
Excavators are the most widely used earth‑moving construction machinery in infrastructure engineering. According to operating weight, they are classified into micro, small, medium, and large types; according to walking modes, they are divided into crawler and wheeled excavators. Crawler excavators feature low ground pressure, excellent terrain adaptability and stable operation, suitable for complex working conditions such as mining, infrastructure construction, farmland water conservancy, and municipal emergency works. Wheeled excavators offer flexible mobility and are mostly applied in urban road construction and short‑distance mobile operations.
An excavator integrates traveling mechanism, rotating platform, working device, hydraulic system, power assembly, electric control cab and thousands of other components, with large differences in component weight and strict requirements for assembly precision. Key processes including heavy component hoisting and positioning, high‑precision bolt torque control, hydraulic pipe sealing and overall system commissioning directly determine product quality, placing high demands on the load capacity, lifting configuration, assembly accuracy and operational stability of the excavator production line.
Excavator assembly line is the core complete equipment for mass production of engineering machinery. It covers the full manufacturing process including component pre‑assembly, assembly combination, part fitting, fluid filling, overall commissioning and finished product offline delivery. Assembly procedures vary significantly for different tonnage models. Mini and small excavators with compact structures adapt to high‑tempo and high‑efficiency mass production, while medium and large excavators with oversized components and complex processes require excavator production lines with heavy‑load capacity, heavy‑duty lifting and high‑precision assembly performance. Customized according to customer’s mainstream model tonnage, production capacity and factory conditions, our excavator assembly line effectively guarantees assembly quality, production efficiency and mass production stability.
Structural Composition and General Technical Parameters
Three mature types of excavator assembly lines are widely adopted in the industry: heavy‑duty floor pallet assembly lines, chain plate stepping assembly lines, and AGV flexible assembly lines, which adapt to different production capacities, model ranges and factory renovation demands. The complete excavator production line consists of six core modules: conveying system, lifting auxiliary system, station supporting system, medium supply system, assembly tooling system and information management system, featuring high integration and stable operation.
Core Modules
- Conveying System: As the core delivery carrier of the excavator assembly line, it realizes step‑by‑step transportation of complete machines and tooling pallets between stations, ensuring continuous and stable assembly procedures and controllable production tempo.
- Lifting Auxiliary System: Equipped with overhead bridge cranes and jib cranes to complete hoisting, positioning and assembly of heavy components such as engines, boom assemblies, counterweights and rotating platforms, serving as essential auxiliary equipment for excavator production lines.
- Station Supporting System: Standardized with station shelves, tool hangers, component storage areas and material transfer trolleys to realize standardized management of materials and tools on the excavator assembly line and improve overall assembly efficiency.
- Medium Supply System: Equipped with centralized air supply, hydraulic oil, lubricating oil and antifreeze filling equipment to provide stable and standardized fluid supply for assembly operations on excavator production lines.
- Assembly Tooling System: Configured with professional positioning fixtures and high‑precision torque tightening equipment to ensure standard bolt tightening torque and accurate component positioning during production on the excavator assembly line, guaranteeing consistent assembly quality and overall reliability.
- Information Management System: Compatible with MES manufacturing execution systems to realize full‑process digital management including work order issuance, material traceability, process monitoring, quality data collection and equipment supervision for the excavator assembly line.
General Technical Parameters
| Applicable Model Tonnage | Customizable for full‑range excavators from 1t to 80t, meeting mass production requirements of various excavator production lines |
| Standard Station Configuration | 8–24 modular stations covering pre‑assembly, main assembly, fluid filling, inspection and final commissioning for full‑process excavator assembly line operation |
| Production Tact | 15–45 minutes/unit for small excavators; 60–180 minutes/unit for medium and large excavators, flexibly adjustable according to overall excavator assembly line configuration |
| Pallet Load Capacity | 10t–120t (adjustable on demand), adapting to load requirements of excavator production lines for different tonnage models |
| Conveying Mode | Intermittent stepping transportation with unified station shifting after process completion, balancing assembly precision and operational safety of the excavator assembly line |
| Lifting Equipment Specification | Overhead crane rated load 2t–20t, fully covering heavy component lifting demands of excavator production lines |
| Air Supply Pressure | 0.5–0.7 MPa, supporting stable operation of all pneumatic assembly tools on the excavator assembly line |
| Layout Form | Mainly linear layout, optional U‑loop layout; strictly divided working areas, pedestrian passages and material passages to achieve standardized zoning operation on excavator assembly lines |
Standard Assembly Process Flow
Undercarriage pre‑assembly → rotating platform pre‑assembly → upper and lower frame assembly → power and heat dissipation system assembly → hydraulic pump and pipeline installation → cab assembly → working device assembly and commissioning → counterweight installation and fixation → multi‑fluid filling → overall performance testing and debugging → finished product delivery. This is the universal standard process for industrial excavator assembly lines.
On‑site Operation Description

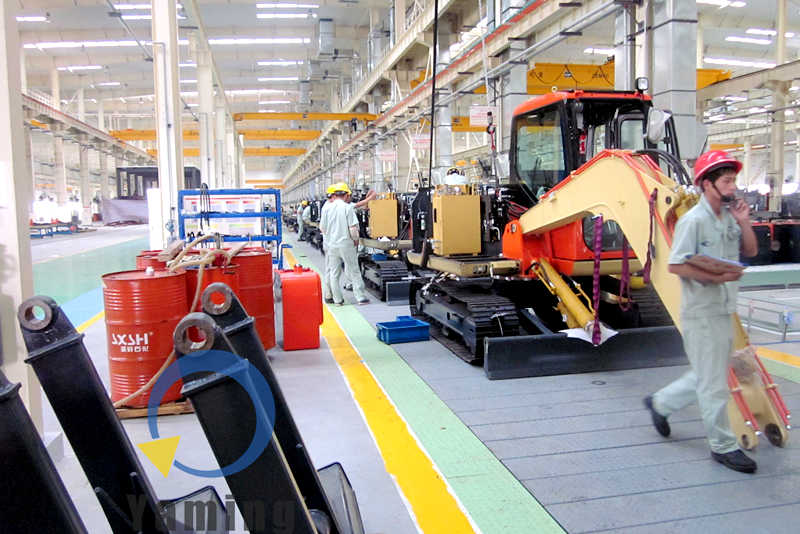

The on‑site scene displays a small crawler excavator heavy‑duty floor pallet assembly line, one of the most mature and widely applied excavator production line solutions for small and medium excavator mass production. The production line adopts heavy‑duty floor pallets for load‑bearing and transportation. The crawler structures in the picture belong to the walking mechanism of finished excavator products, not conveying equipment of the excavator assembly line.
The site adopts a standardized linear layout. Multiple semi‑finished excavators are arranged orderly along the excavator assembly line to complete assembly station by station. Overhead bridge cranes are installed throughout the workshop to efficiently complete lifting and positioning of large components such as booms, counterweights and engines. The floor is marked with standardized zoning lines to separate assembly areas, pedestrian passages and material stacking areas. On‑site tooling, turnover boxes and oil storage facilities ensure continuous batch production of the excavator production line.
The workshop adopts a mature production mode of refined manual assembly assisted by crane equipment. Operators complete assembly and patrol inspection in strict accordance with process specifications on the excavator assembly line. As a standardized basic excavator production line, it features simple structure, reliable operation and cost‑effective investment, supporting stable mass production of small and medium excavators. The information system adopts background centralized management to meet conventional production and quality control requirements.
Customizable Parameters
This series of excavator assembly lines supports full‑range customized design. We can optimize the excavator production line configuration according to customers’ product positioning, annual output demand, factory dimensions and budget. The core customizable items are as follows:
- Model Tonnage Customization: Adaptable to 1–6t micro & small excavators, 6–30t medium excavators and 30–80t large excavators, with matched pallet load capacity, crane tonnage and station structural strength for the excavator assembly line.
- Conveying Mode Customization: Three mature solutions for excavator production lines. Floor pallet solutions are preferred for old factory renovation with no foundation digging required, low cost and high adaptability; chain plate stepping lines are suitable for new factories with stable performance for mass production; AGV flexible lines apply to multi‑model mixed production to improve excavator assembly line versatility.
- Station & Production Tact Customization: Flexible adjustment of pre‑assembly, combination, filling and inspection stations. The optimal production tact is configured according to annual output targets to maximize overall efficiency of the excavator production line.
- Lifting System Customization: Customizable quantity, rated load and coverage of bridge cranes and jib cranes to match maximum component lifting weight, ensuring operational safety and assembly efficiency of the excavator assembly line.
- Station Auxiliary Equipment Customization: Optional automatic tightening machines, intelligent fluid filling equipment and smart tool management systems. Customizable station shelves, fixtures and material storage layouts to realize standardized and efficient station management on the excavator production line.
- Intelligent Upgrade Customization: Basic version meets conventional production management; high‑end version integrates vision inspection, laser measurement and real‑time torque data acquisition systems, connecting with MES/ERP platforms to achieve full data traceability and closed‑loop quality control for the excavator assembly line.
- Production Line Layout Customization: Linear or U‑shaped layouts are optional according to factory size, gate position and material flow path to optimize space utilization and production logistics of the excavator assembly line.
- Safety Protection Customization: Standard with safety marking lines; upgradable with protective fences, emergency stop control systems and station early warning devices to make the entire excavator production line fully compliant with industrial safety specifications.
